Class of Non-flammability Euroclass TS EN 13501-1 EU" norms, "Class A2 s1 d0 - Non-combustible"

Density "1.46 gr/cm³" according to "TS EN ISO 1183-1" norms

Temperature Resistance Limit "No deterioration at 800 °C" according to "ASTM E1069" norms

Barcol Hardness "52" according to "TS EN 59" norms

Impact resistance -Ball Method "No crackages" according to "DIN ISO 4586 T12" norms

Impact Resistance - with Charpy Device "30 kj/m2" according to "TS EN ISO 179-1" norms

Sound Insulation "40 dB" according to "TS EN ISO 140-3" norms

Frost Resistance "No deterioration" according to "ASTM C 666" norms

Panel Size 279 × 109 cm [h] (± 1%)

Panel Thickness ~ 10–20 mm

Texture Depth ~ 20–30 mm

Weight ~ 7–8 kg/m²

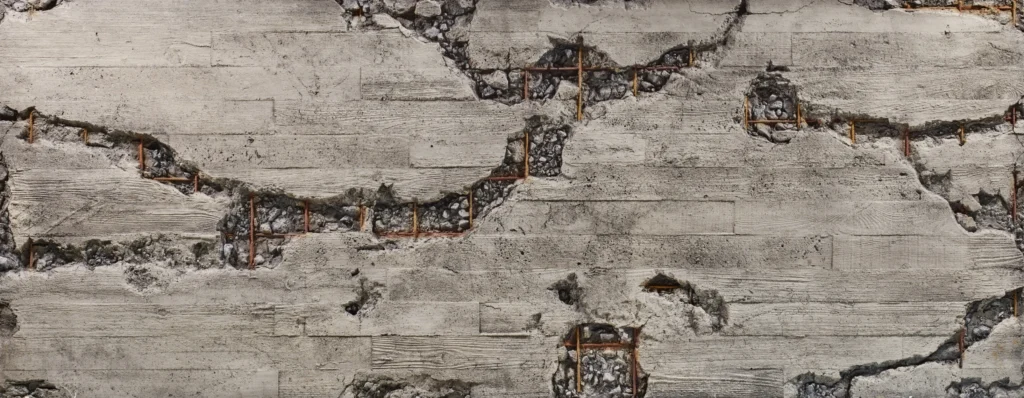

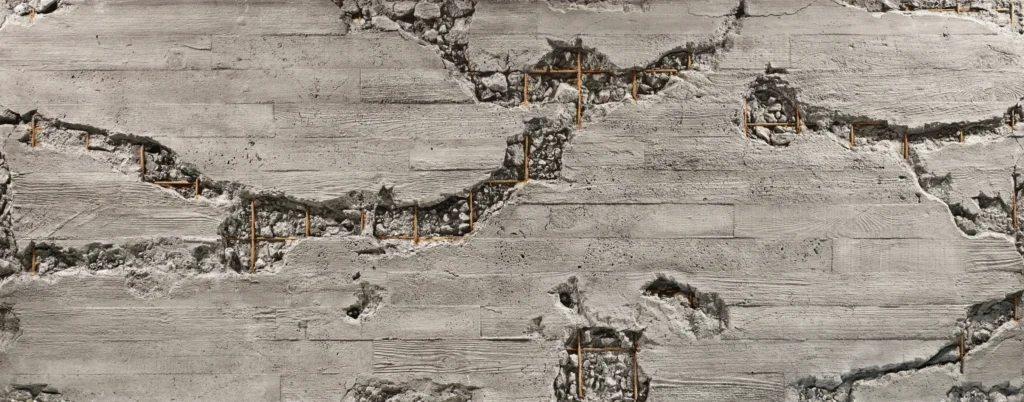

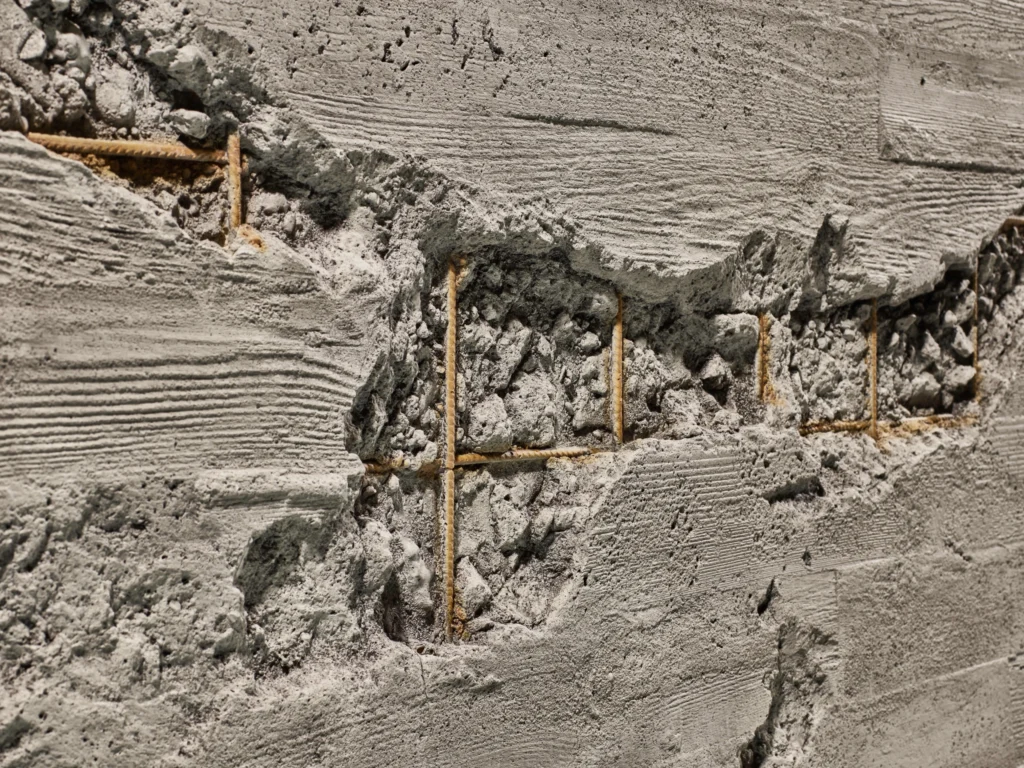

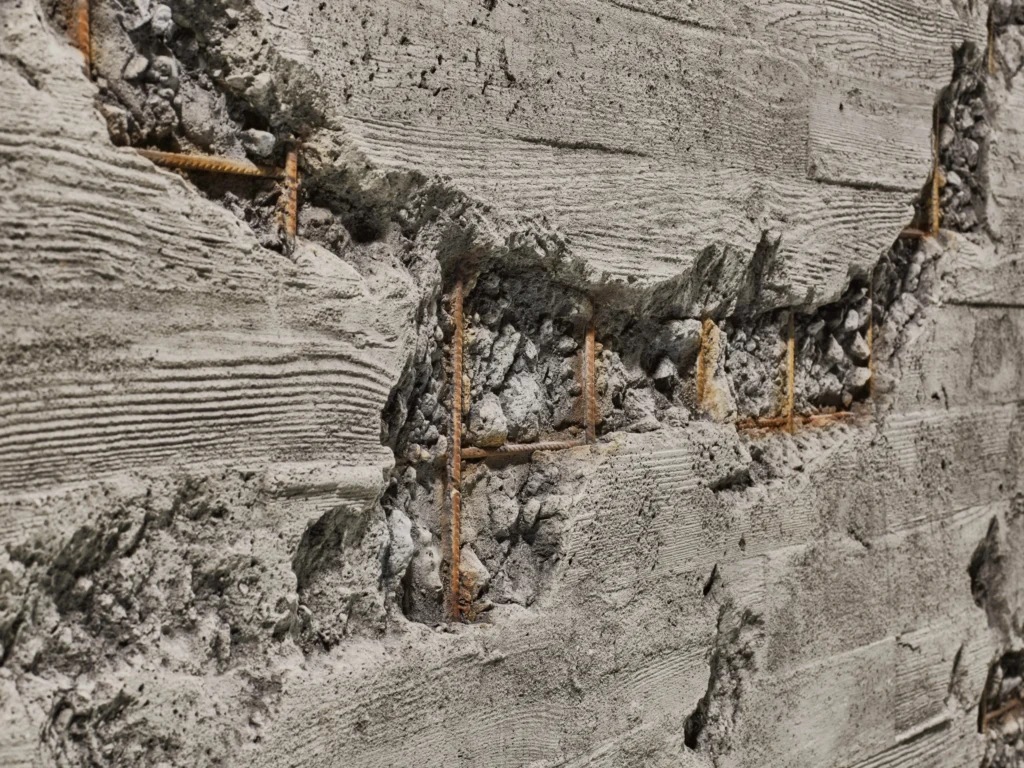

The Ruina Vintage Panel transforms the aesthetic of industrial concrete and exposed reinforcement steel—cracks, rusted rebar imprints, surface irregularities, and the muted texture of aged concrete—into a fiber + fiberglass composite panel using high-resolution molding techniques. The topographic details are reproduced with realistic embossed textures and deep shadow–light transitions that enhance surface authenticity.

Its core structure consists of fiberglass layers embedded within a mineral-filled polymer matrix. This composite configuration stabilizes the panel under bending, torsional stress, impact, and static loads. Even in large-format applications, structural issues such as deformation, warping, or cracking are minimized.

Formulated with a low thermal expansion coefficient, the panel does not blister, delaminate, or surface-crack under temperature or humidity changes. The surface coating is reinforced with stabilized resins that resist UV exposure, water vapor, moisture, and atmospheric conditions—providing long-term stability in exterior-exposed applications.

The surface geometry distributes impact energy efficiently across the panel, contributing to high impact resistance and extended durability. The fiber–fiberglass internal structure allows the panel to be cut, drilled, and shaped as needed, supporting seamless integration of outlets, lighting elements, mechanical lines, and architectural detailing.

Installation is performed using a mechanical fastening system (screw + dowel), ensuring a secure bond to the wall surface and long-term structural stability.

Technically, the Ruina Vintage Panel offers:

high mechanical rigidity and impact resistance

lightweight construction thanks to low surface density

strong visual impact with industrial concrete & metallic patina effects

resistance to thermal, humidity, UV, and outdoor conditions

large-format surface continuity with minimal joints

a fully workable and installation-ready composite structure

Together, these features position Ruina Vintage as a high-performance wall cladding system for modern architectural applications.
