Class of Non-flammability Euroclass TS EN 13501-1 EU" norms, "Class A2 s1 d0 - Non-combustible"

Density "1.46 gr/cm³" according to "TS EN ISO 1183-1" norms

Temperature Resistance Limit "No deterioration at 800 °C" according to "ASTM E1069" norms

Barcol Hardness "52" according to "TS EN 59" norms

Impact resistance -Ball Method "No crackages" according to "DIN ISO 4586 T12" norms

Impact Resistance - with Charpy Device "30 kj/m2" according to "TS EN ISO 179-1" norms

Sound Insulation "40 dB" according to "TS EN ISO 140-3" norms

Frost Resistance "No deterioration" according to "ASTM C 666" norms

Panel Size 299 × 125 cm [h] (± 1%)

Panel Thickness ~ 6–11 mm

Texture Depth ~ 6–11 mm

Weight ~ 4–5 kg/m²

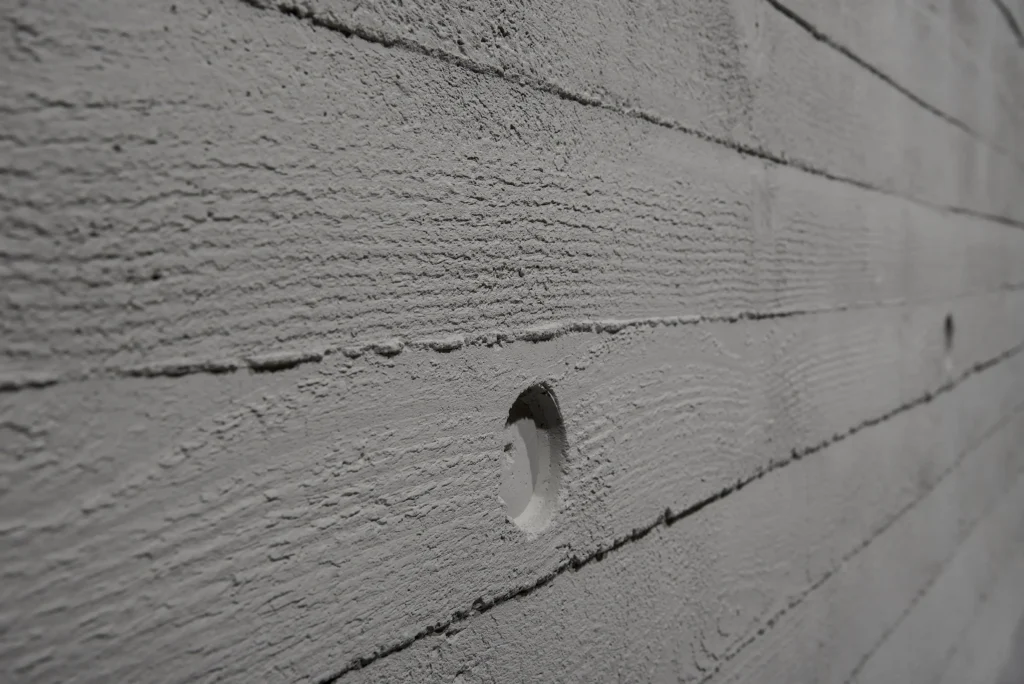

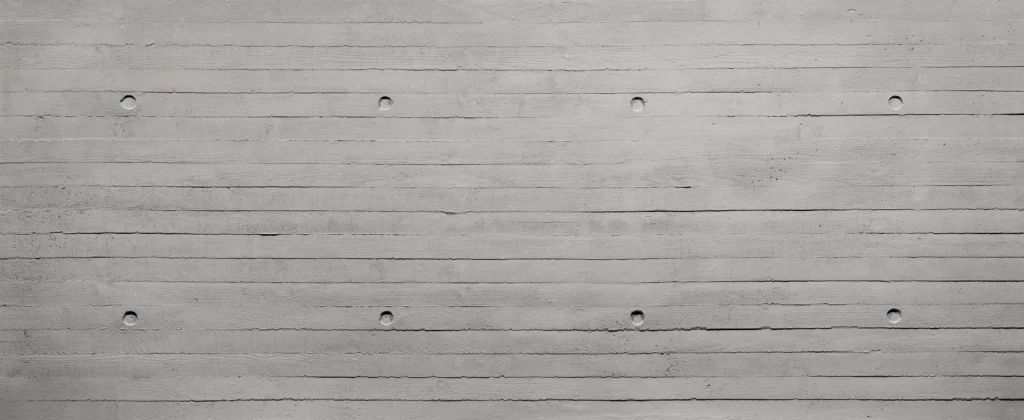

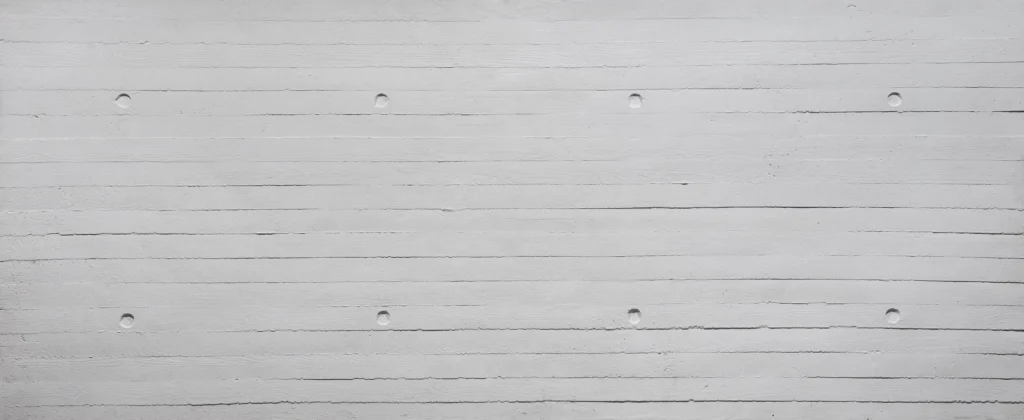

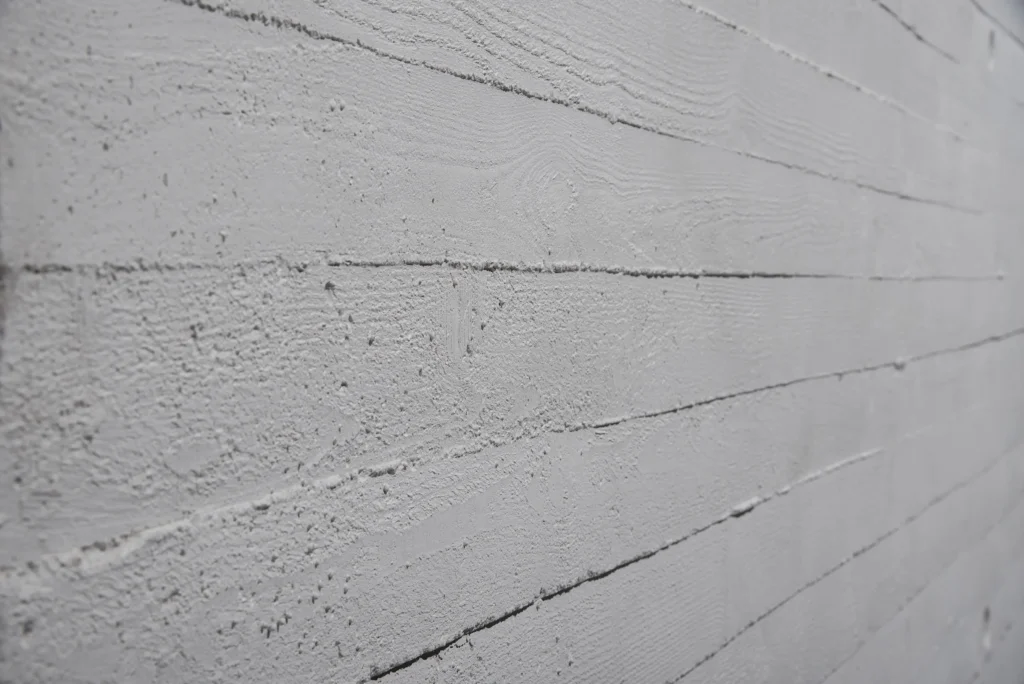

The T-Rod Plate wall panel is a slim yet rigid surface system that reconstructs the anatomy of concrete on a high-performance fiber–composite core. The embossed surface topography incorporates fracture lines, formwork joint impressions, coarse textures, and subtle wear effects. Produced through high-resolution mold technology, this 3D surface is replicated uniformly and with precise detail.

The structural core consists of fiberglass layers embedded within a polymer resin matrix reinforced with mineral fillers. This hybrid system provides:

high resistance to bending and torsional loads

controlled energy dissipation under impact

stable form performance over large wall spans

The panel is engineered with optimized thermal behavior; its low expansion coefficient prevents blistering, cracking, or delamination during sudden temperature changes. The exterior surface is stabilized against UV exposure and atmospheric effects—ensuring long-term durability without color fading, loss of matte texture, or surface fatigue.

Thanks to its fiber–composite formulation, the panel is highly workable. It can be cut, drilled, and shaped to accommodate project-specific requirements. Electrical outlets, lighting details, concealed lines, and architectural transitions can be integrated seamlessly.

Installation is achieved through a mechanical fastening system (screw + dowel), providing secure attachment and long-term stability.

Technical Advantages of T-Rod Plate

ultra-lightweight yet structurally rigid composition

3D embossed concrete texture

thermal and moisture stability

UV and exterior weather resistance

high durability via impact-energy distribution

large format requiring minimal joints

easily cuttable and shapeable fiber core
