Class of Non-flammability Euroclass TS EN 13501-1 EU" norms, "Class A2 s1 d0 - Non-combustible"

Density "1.46 gr/cm³" according to "TS EN ISO 1183-1" norms

Temperature Resistance Limit "No deterioration at 800 °C" according to "ASTM E1069" norms

Barcol Hardness "52" according to "TS EN 59" norms

Impact resistance -Ball Method "No crackages" according to "DIN ISO 4586 T12" norms

Impact Resistance - with Charpy Device "30 kj/m2" according to "TS EN ISO 179-1" norms

Sound Insulation "40 dB" according to "TS EN ISO 140-3" norms

Frost Resistance "No deterioration" according to "ASTM C 666" norms

Panel Size 301 cm × 137 cm [h] (±1%)

Panel Thickness ~ 12–18 mm

Texture Depth ~ 22–25 mm

Weight ~ 6–7 kg/m²

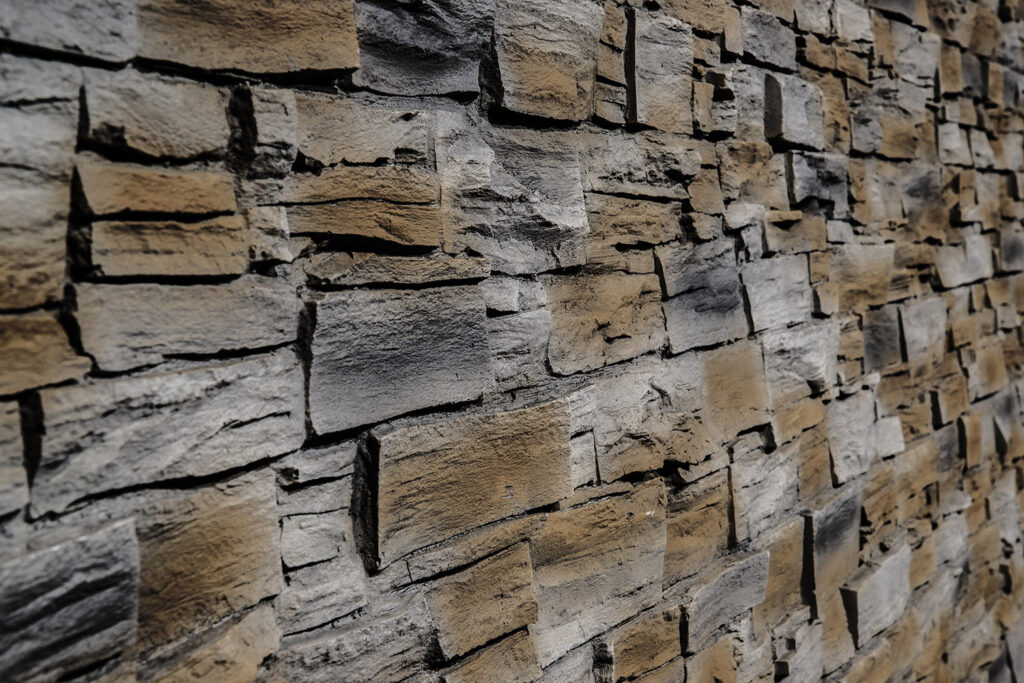

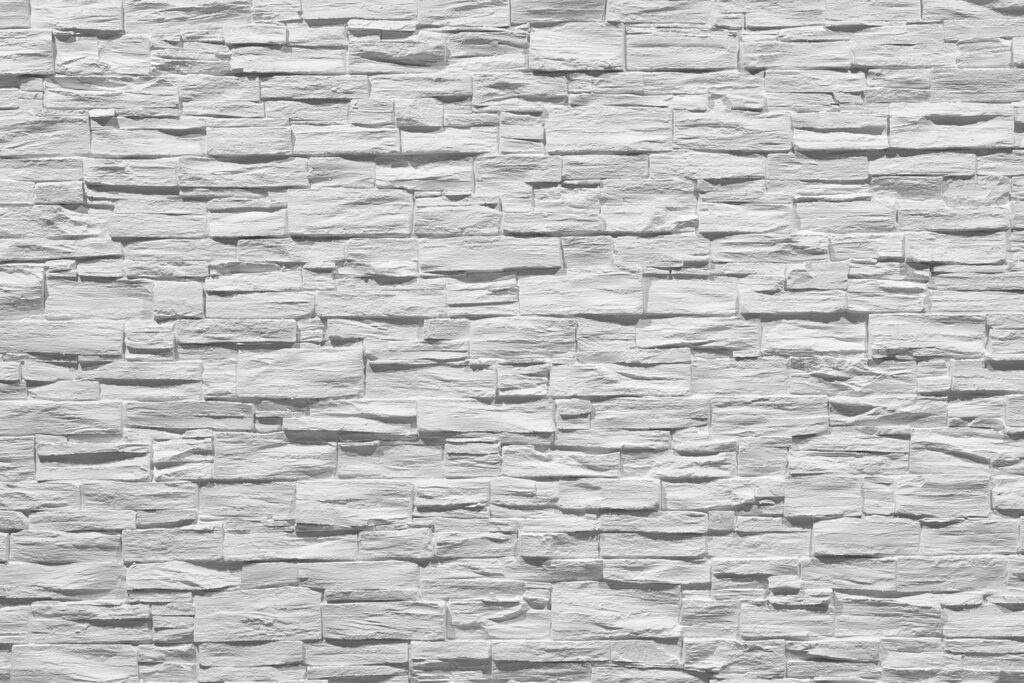

The Pizarra wall panel is a cladding system developed with fiber-reinforced wall panel technology that reproduces the morphology of natural stone with high precision. The stratification lines, micro-level roughness distribution, surface depth, and tonal variations of stone color are transferred onto the surface using specialized molding and surface processing techniques.
This structure ensures both visual and tactile authenticity.

The panel’s structural body is fiber-reinforced to provide high rigidity and impact resistance. This configuration enables the panel to remain resistant to mechanical stresses such as bending, sagging, or surface deformation. At the same time, it reduces the risk of cracking or surface delamination under impact, pressure, or surface loads making Pizarra a long-lasting and reliable cladding material.

Its surface coating is stabilized to resist water, moisture, rain, UV radiation, and outdoor conditions. Thus, even in exterior applications or humid interiors, the panel maintains its color, surface texture, and form stability for many years. The controlled pore structure and surface barrier minimize dirt retention and surface degradation, reducing maintenance needs.

Pizarra offers high workability cutting, drilling, creating openings for sockets/lighting lines, and custom shaping can be easily performed with suitable equipment. This allows seamless adaptation to architectural projects, infrastructure details, and custom design requirements.
Mechanical fastening (screws + anchors) is recommended for installation, ensuring firm adherence to the surface and stability throughout thermal and mechanical cycles.

Additionally, the production process and material composition of Pizarra fiber reinforcement, polymer-supported structure, and surface stabilization are optimized for reduced environmental impact.
For this reason, Pizarra has the potential to contribute points to projects within green building certification systems such as LEED, BREEAM, and WELL, making it a preferred panel for applications focused on aesthetics, technical performance, and sustainability.
