Class of Non-flammability Euroclass TS EN 13501-1 EU" norms, "Class A2 s1 d0 - Non-combustible"

Density "1.46 gr/cm³" according to "TS EN ISO 1183-1" norms

Temperature Resistance Limit "No deterioration at 800 °C" according to "ASTM E1069" norms

Barcol Hardness "52" according to "TS EN 59" norms

Impact resistance -Ball Method "No crackages" according to "DIN ISO 4586 T12" norms

Impact Resistance - with Charpy Device "30 kj/m2" according to "TS EN ISO 179-1" norms

Sound Insulation "40 dB" according to "TS EN ISO 140-3" norms

Frost Resistance "No deterioration" according to "ASTM C 666" norms

Panel Size 303 cm × 130 cm [h] (± 1%)

Panel Thickness ~ 14 – 18 mm

Texture Depth ~ 16 – 20 mm

Weight ~ 7 – 8 kg/m²

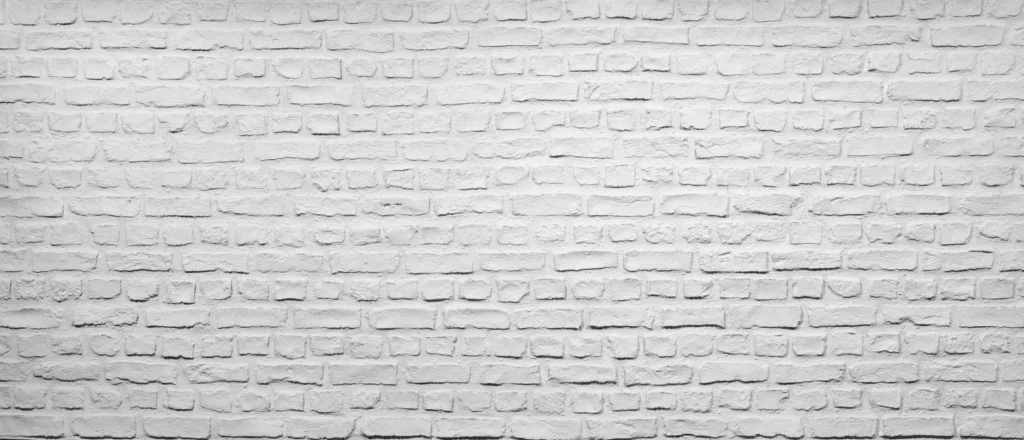

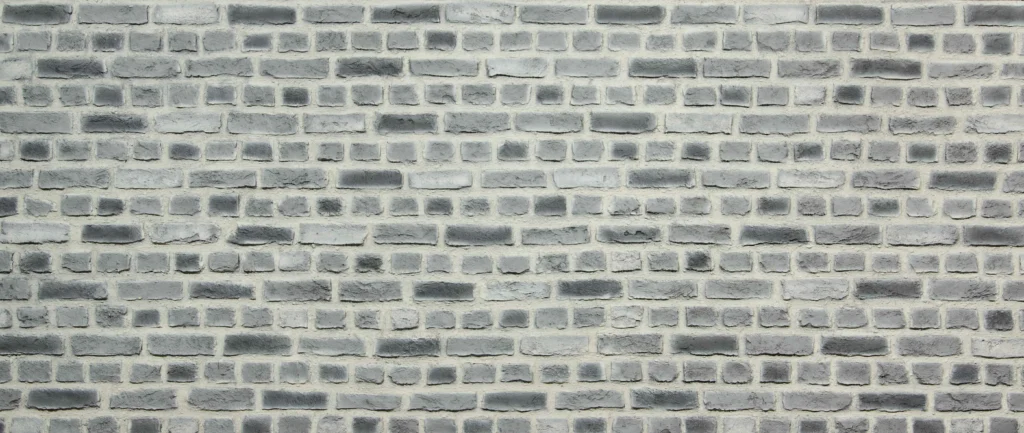

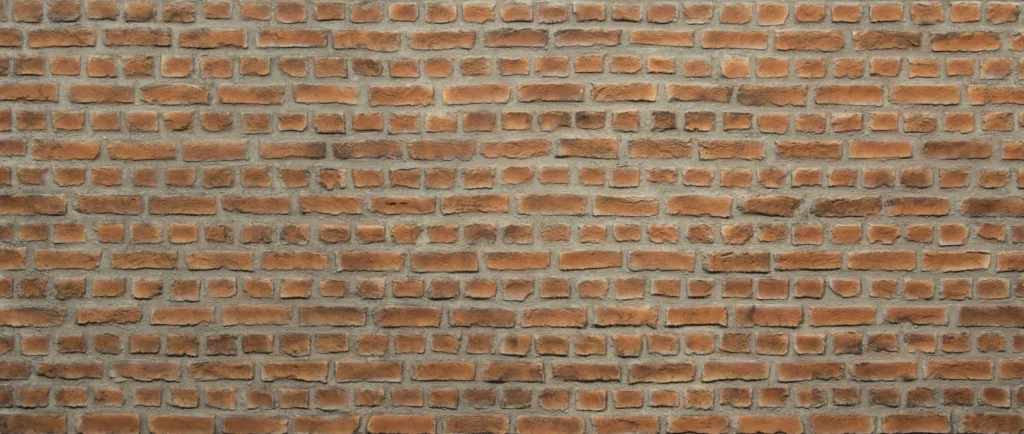

The Ladrillo Loft Cure wall panel is a fiber-composite cladding system that reproduces the characteristic elements of brick wall surfaces surface roughness, mortar joint depth, brick surface porosity, and subtle irregularities through a detailed 3d surface topography. The embossed surface is created using specialized molding techniques, ensuring high-resolution detail and consistency across every panel.

The core structure consists of a combination of fiberglass-reinforced polymer binder and mineral filler; this composite composition delivers high elastic modulus and rigidity, balanced distribution of impact energy across the panel, lightweight application advantages thanks to low unit weight, and dimensional stability against deformation across large surfaces.

The panel’s surface coating is stabilized with resin systems that provide UV resistance, water and moisture barrier properties, and overall surface durability; as a result, the panel can be used across a wide range of applications from interior spaces to bathrooms, kitchens, or even exterior façades. With its optimized thermal expansion behavior, no cracking, swelling, or peeling occurs under temperature–humidity cycles.

The fiber-composite internal structure allows the panel to be cut, drilled, and shaped; power outlets, lighting lines, service channels, and architectural details can be easily integrated into the project. Installation is carried out with a screw + dowel mechanical fastening method, ensuring long-term surface stability and structural integrity.

With its long service life, lightweight composition, and environmentally optimized design, Ladrillo Loft Cure wall panel is a cladding solution with the potential to contribute points in LEED, BREEAM, and WELL certification systems in categories such as material durability, resource management, and interior environmental quality.
