Class of Non-flammability: Euroclass TS EN 13501-1 EU" norms, "Class A2 s1 d0 - Non-combustible"

Density: "1.46 gr/cm³" according to "TS EN ISO 1183-1" norms

Temperature Resistance Limit: "No deterioration at 800 °C" according to "ASTM E1069" norms

Barcol Hardness: "52" according to "TS EN 59" norms

Impact resistance -Ball Method: "No crackages" according to "DIN ISO 4586 T12" norms

Impact Resistance - with Charpy Device: "30 kj/m2" according to "TS EN ISO 179-1" norms

Sound Insulation: "40 dB" according to "TS EN ISO 140-3" norms

Frost Resistance: "No deterioration" according to "ASTM C 666" norms

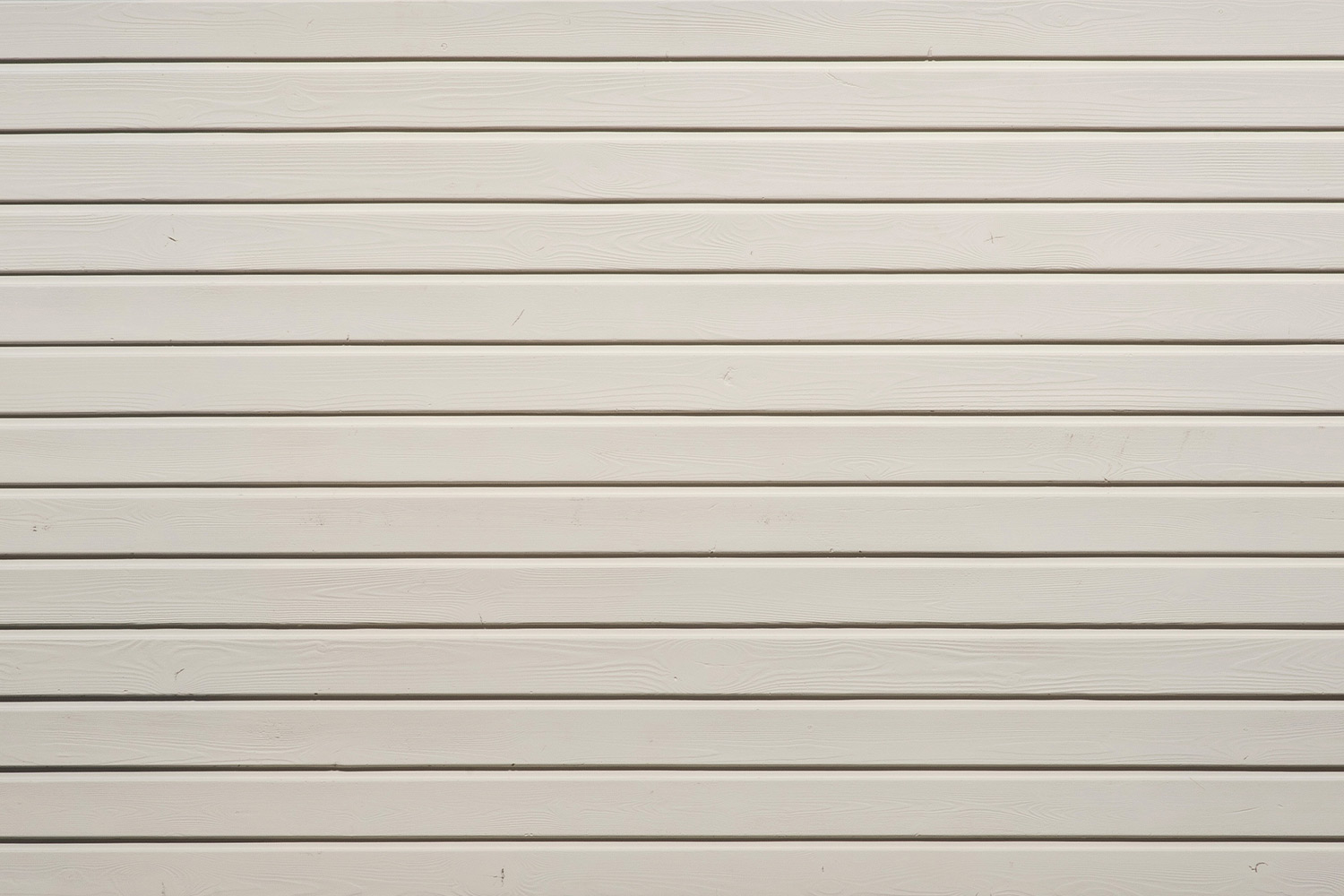

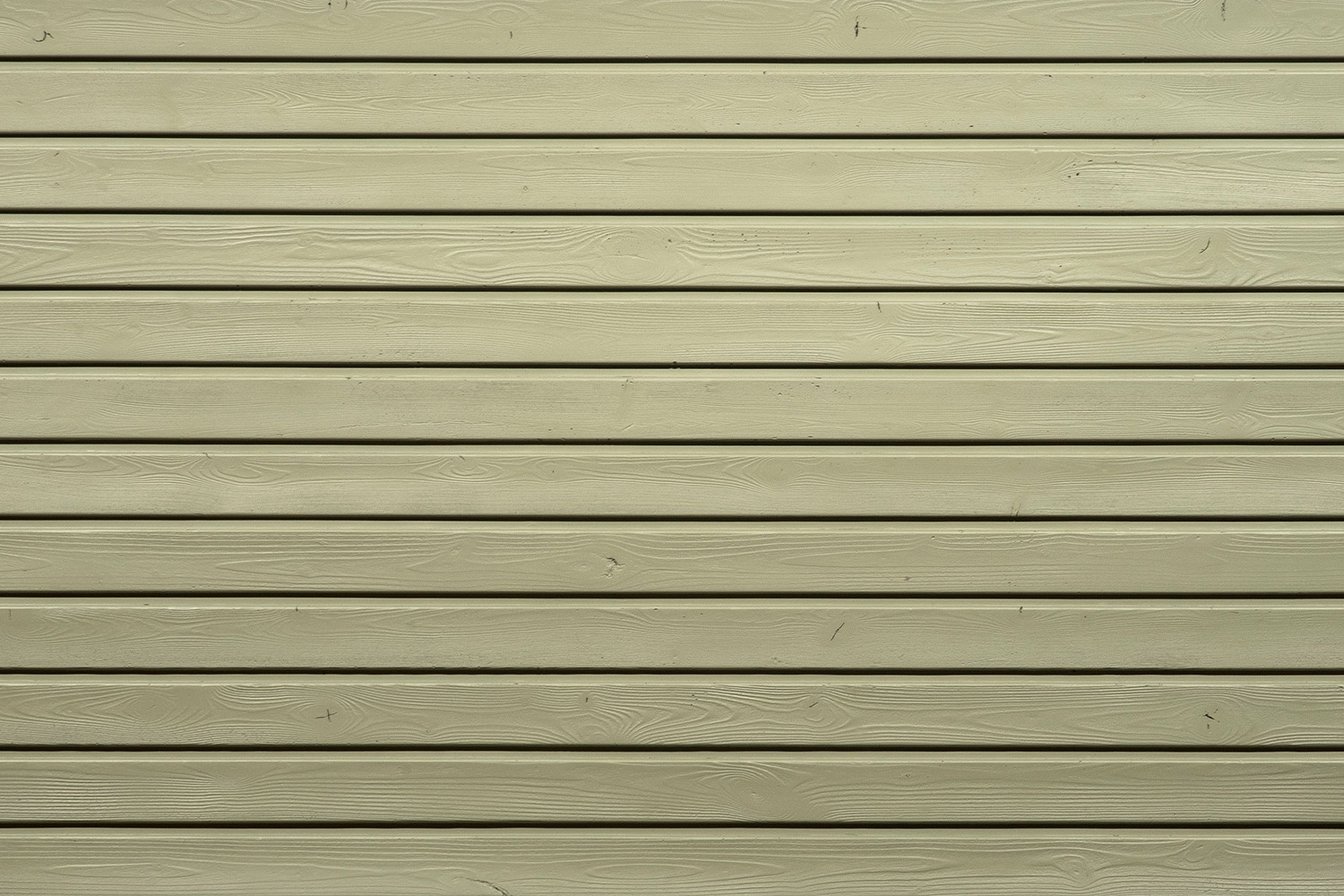

The W-Plate Panel is an advanced fiber- and fiberglass-based wall panel engineered to reinterpret flat panel geometry in line with the demands of high mechanical performance, low weight, and environmental durability. Its structural core composed of fiberglass layers stabilized with mineral additives and polymer binders ensures stability under bending, surface tension, and deformation loads across wide surfaces. This composite system provides high rigidity despite its lightweight composition, making the panel ideal for large-scale applications.

W-Plate is designed to maintain dimensional stability in environments with significant temperature fluctuations. Thanks to its optimized low-expansion behavior, the surface does not blister, separate, display thermal line distortion, or lose its form. The surface components are formulated to withstand UV radiation, humidity, water vapor, and chemical atmospheres, enabling consistent performance in both interior and under suitable conditions exterior architectural applications.

The panel’s mechanical behavior, defined by its flat yet rigid configuration, supports the balanced distribution of impact energy across the surface. Despite its low surface density, W-Plate offers high structural strength, making it a reliable choice for extensive wall cladding, commercial environments, and projects with demanding technical requirements. Its fiber-reinforced composite base resists bending and localized deformation.

W-Plate offers significant advantages in workability. It can be cut, drilled, and shaped easily with standard tools, allowing seamless integration of outlets, lighting fixtures, and service channels. Installation is performed using screw–dowel mechanical fastening, and the stable internal structure ensures strong anchorage at connection points, supporting long-term installation durability.

W-Plate has been designed to provide a reliable and long-lasting surface solution in modern architectural projects through its high stability, lightweight structure, impact resistance, environmental durability, and adaptability across multiple application scenarios.

Its durable composite structure and production approach naturally align with sustainability principles. Owing to its low weight, the panel reduces energy consumption in manufacturing and transportation, while its long-term performance optimizes material cycles. Free of harmful chemicals, it supports indoor air quality and user well-being. These qualities make the W-Plate Panel a suitable option for meeting LEED, BREEAM, and WELL certification criteria related to material health, durability, resource efficiency, and indoor comfort.

W-Plate delivers a modern, clean, and high-performance architectural surface solution through its refined geometry and robust engineering foundation.

Panel Size: 281 × 126 cm [h] (± 1%)

Panel Thickness: ~ 9–16 mm

Texture Depth: ~ 9–16 mm

Weight: ~ 6,5–7 kg/m²
