Class of Non-flammability: Euroclass TS EN 13501-1 EU" norms, "Class A2 s1 d0 - Non-combustible"

Density: "1.46 gr/cm³" according to "TS EN ISO 1183-1" norms

Temperature Resistance Limit: "No deterioration at 800 °C" according to "ASTM E1069" norms

Barcol Hardness: "52" according to "TS EN 59" norms

Impact resistance -Ball Method: "No crackages" according to "DIN ISO 4586 T12" norms

Impact Resistance - with Charpy Device: "30 kj/m2" according to "TS EN ISO 179-1" norms

Sound Insulation: "40 dB" according to "TS EN ISO 140-3" norms

Frost Resistance: "No deterioration" according to "ASTM C 666" norms

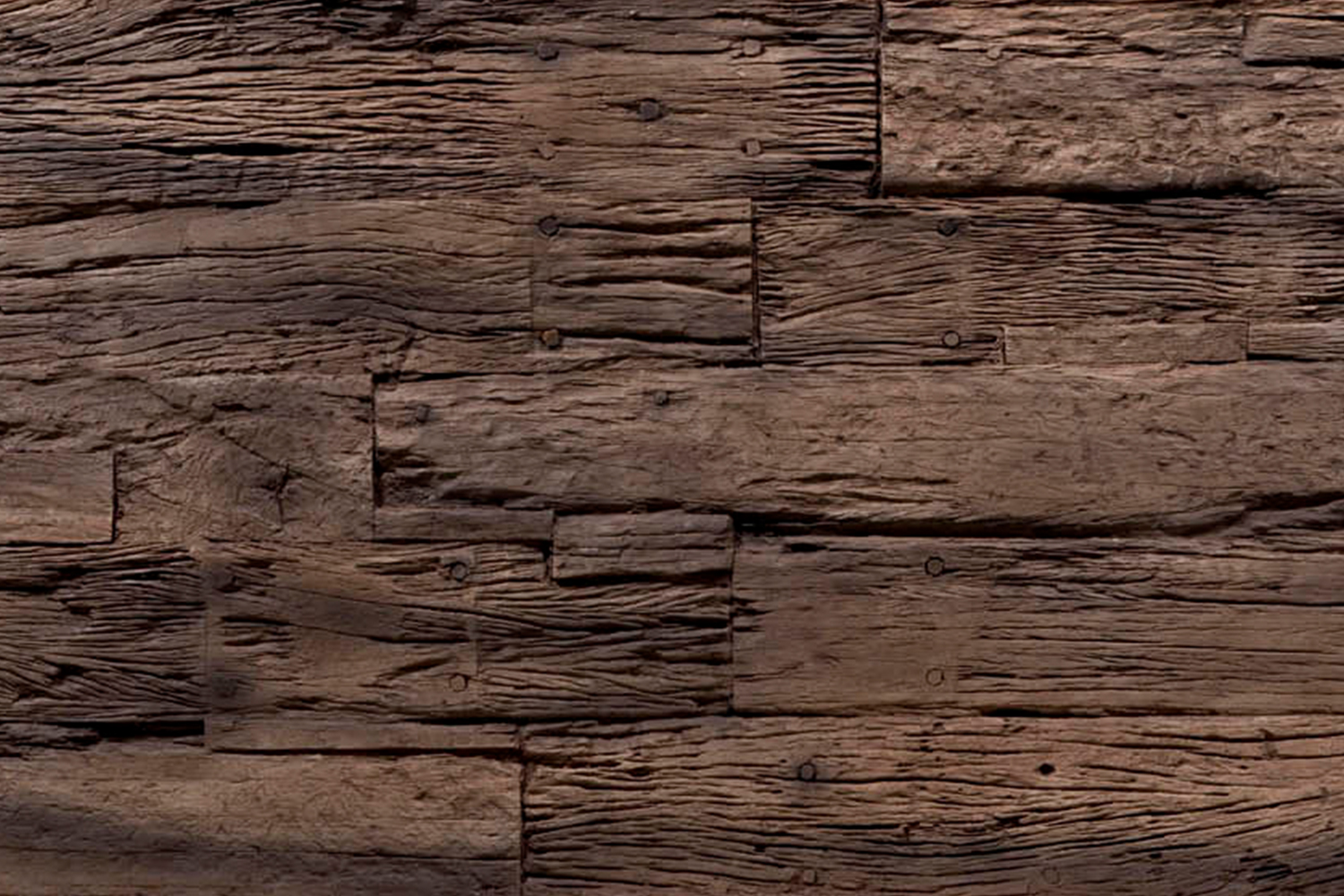

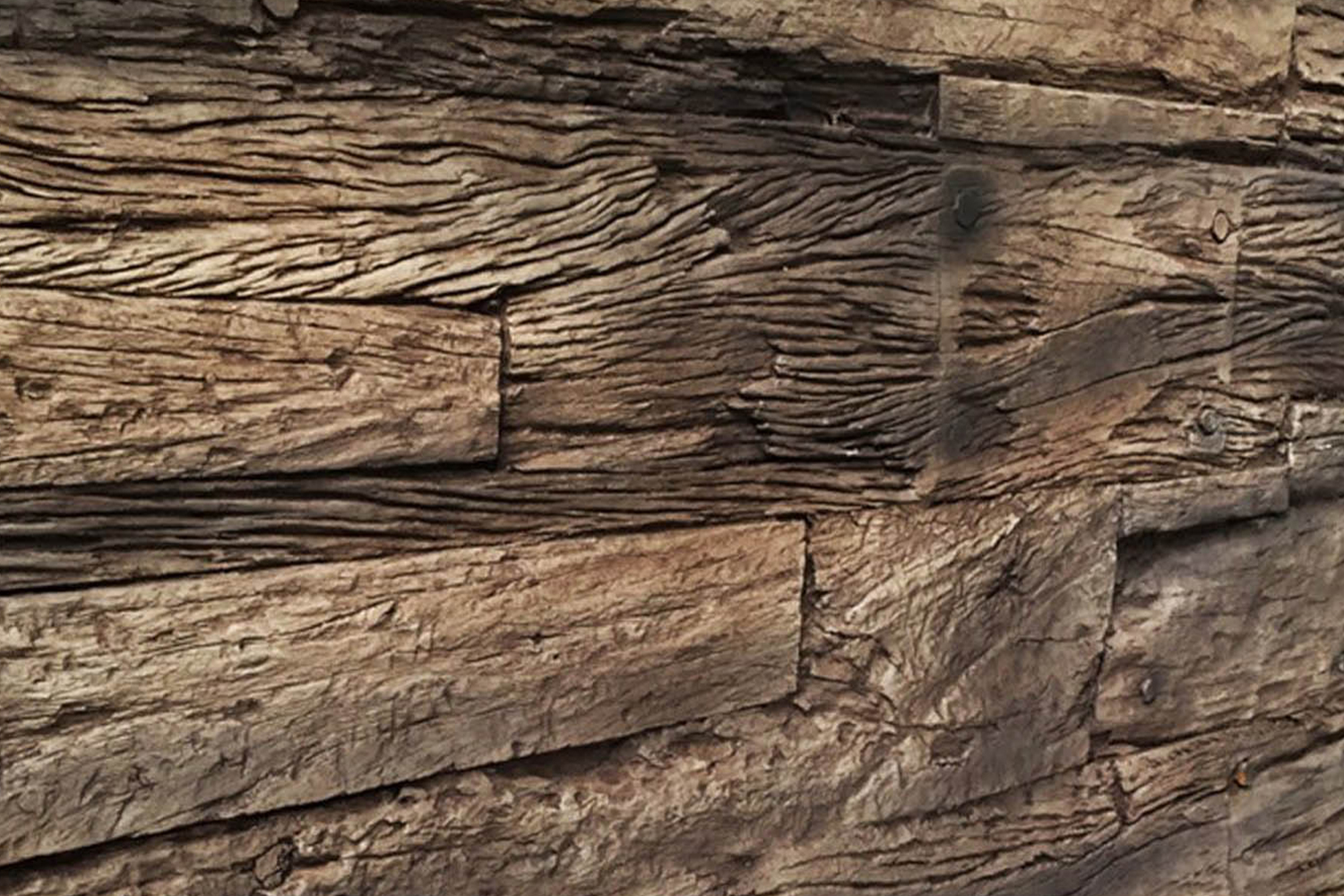

The Timber Panel is an advanced cladding solution that reinterprets the distinctive traces of aged wood surfaces through a fiber–fiberglass structural system. The panel surface showcases a three-dimensional topographic texture that mimics the cracks, grain transitions, indentations, protrusions, and naturally formed irregularities that appear on tree trunks over time. Transferred directly from the master model through a high-precision molding process, the surface retains all micro-details, depth variations, and natural randomness of real wood.

Its core structure is composed of fiberglass layers reinforced with mineral additives. This composite system provides high rigidity and strength despite its low weight, allowing the panel to remain stable under bending or torsional loads. Timber offers a balanced engineering foundation that minimizes deformation risk even across extensive installations.

Optimized for thermal behavior, the Timber Panel ensures dimensional stability under temperature and humidity changes. Its controlled expansion contraction response prevents blistering, cracking, or surface separation during thermal cycles. The embossed geometry distributes impact energy across the panel, enhancing impact resistance and ensuring reliable performance both in daily use and over long-term applications.

The surface formulation is engineered to withstand UV radiation, humidity, water vapor, and atmospheric exposure. This ensures long-term color stability and surface integrity in both interior environments and suitable exterior conditions. Even under prolonged sunlight, the surface does not fade, chalk, or experience textural degradation.

The fiber–fiberglass core gives Timber excellent workability. Cutting, drilling, routing, and shaping can be performed using standard tools, enabling the integration of electrical outlets, lighting fixtures, service conduits, and custom architectural details. Installation is completed with a screw + dowel mechanical fastening system, and the stable core structure ensures strong anchorage for long-term durability.

The Timber Panel is a versatile and reliable cladding solution that offers realistic aged-wood texture reproduction, high mechanical strength despite low density, stable performance against UV and moisture, controlled thermal behavior, impact-dissipating surface geometry, and a fully workable composite core.

Its advanced technical structure aligns with sustainable architectural principles. The lightweight composition reduces energy usage during production, transportation, and installation, while its long-lasting form stability increases material efficiency and minimizes life-cycle impact. Free of harmful chemical substances, the panel supports indoor air quality and contributes to occupant well-being. These attributes make the Timber Panel compatible with LEED, BREEAM, and WELL certification criteria related to material health, environmental impact, durability, and indoor comfort.

Timber brings the time-worn character of wood into architecture, delivering a strong, natural, and enduring surface solution.

Panel Size: 281 × 109 cm [h] (± 1%)

Panel Thickness: ~ 10–14 mm

Texture Depth: ~ 20–25 mm

Weight: ~ 5.5–6 kg/m²

Projects: Carrefoursa - Go to link Concorde Hotels&Resorts - Go to link Eren Et HQ - Go to link T.k House - Go to link
