Class of Non-flammability: Euroclass TS EN 13501-1 EU" norms, "Class A2 s1 d0 - Non-combustible"

Density: "1.46 gr/cm³" according to "TS EN ISO 1183-1" norms

Temperature Resistance Limit: "No deterioration at 800 °C" according to "ASTM E1069" norms

Barcol Hardness: "52" according to "TS EN 59" norms

Impact resistance -Ball Method: "No crackages" according to "DIN ISO 4586 T12" norms

Impact Resistance - with Charpy Device: "30 kj/m2" according to "TS EN ISO 179-1" norms

Sound Insulation: "40 dB" according to "TS EN ISO 140-3" norms

Frost Resistance: "No deterioration" according to "ASTM C 666" norms

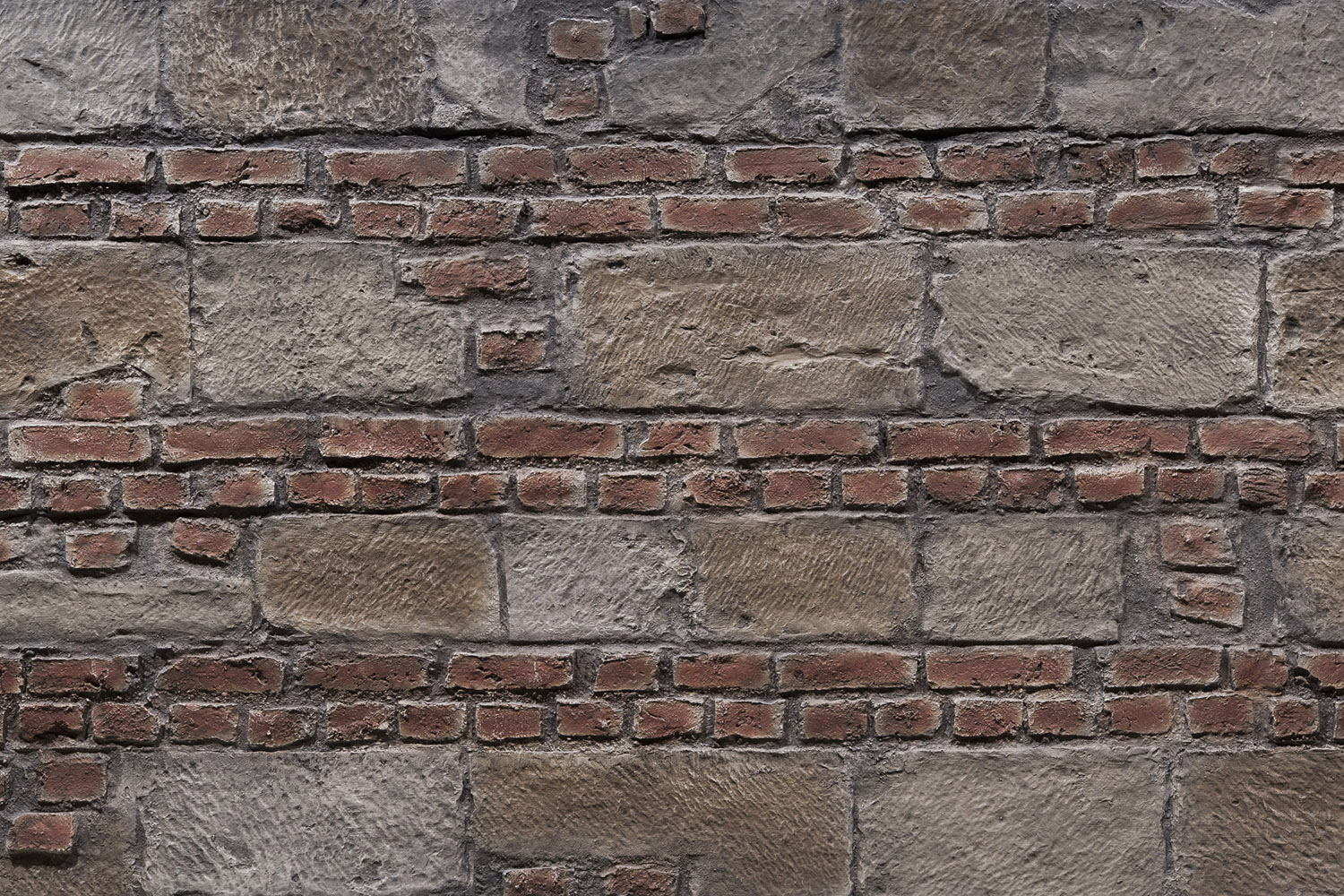

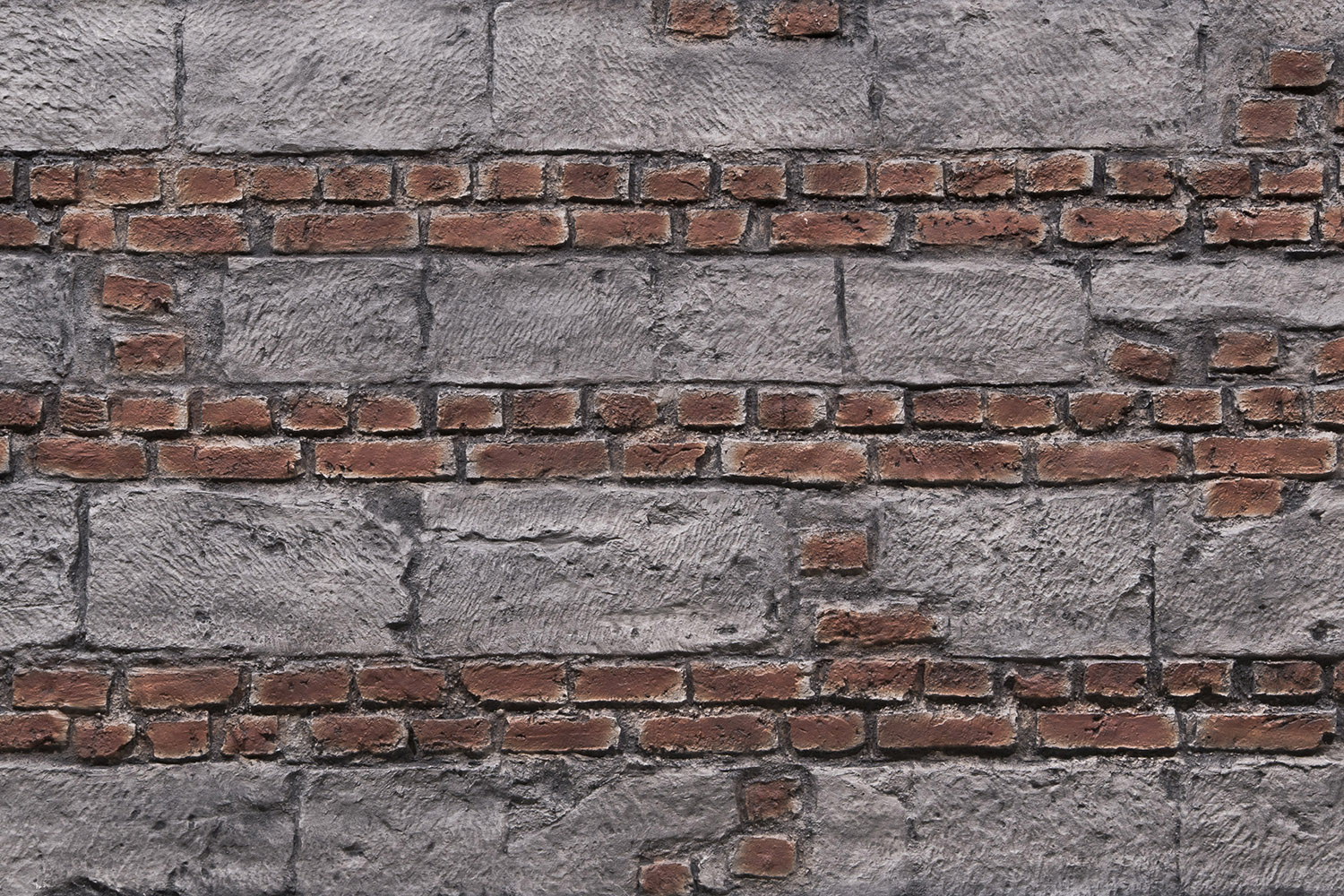

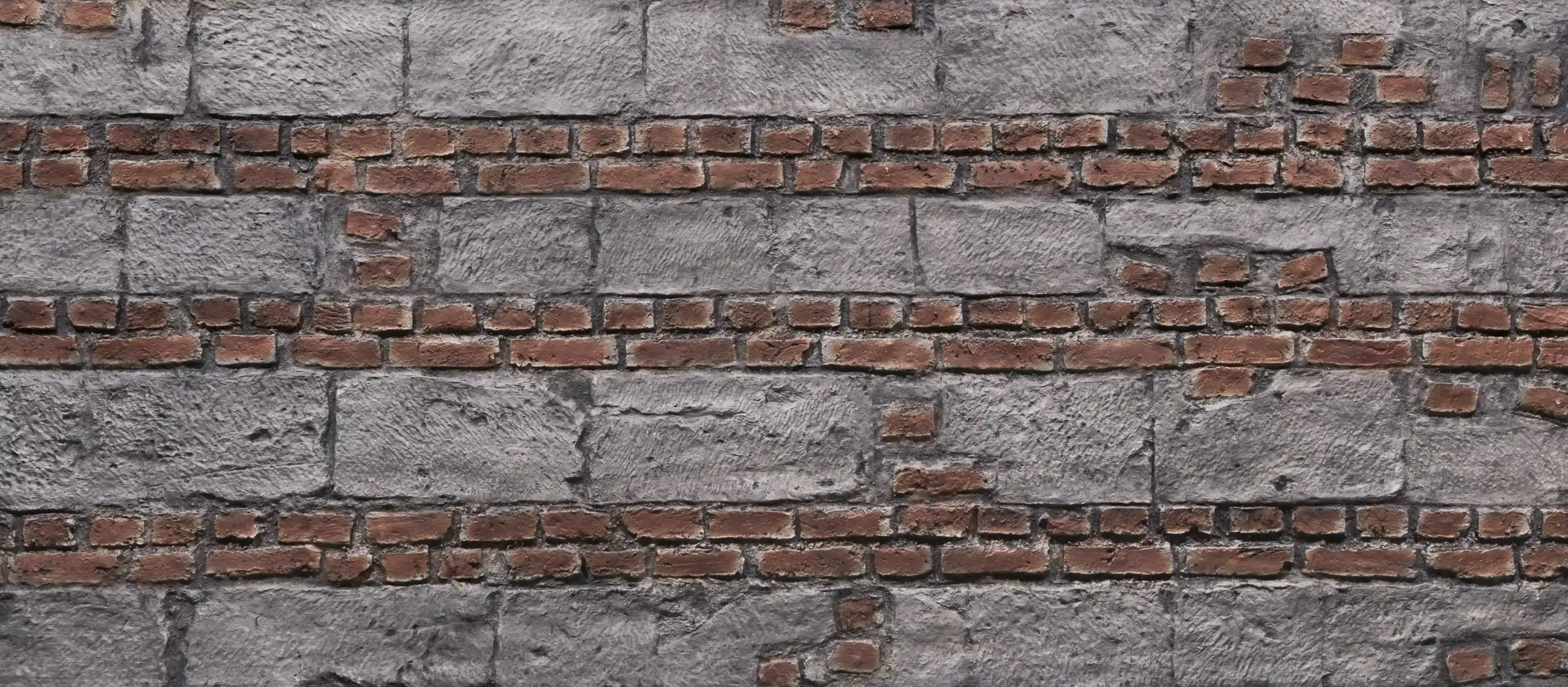

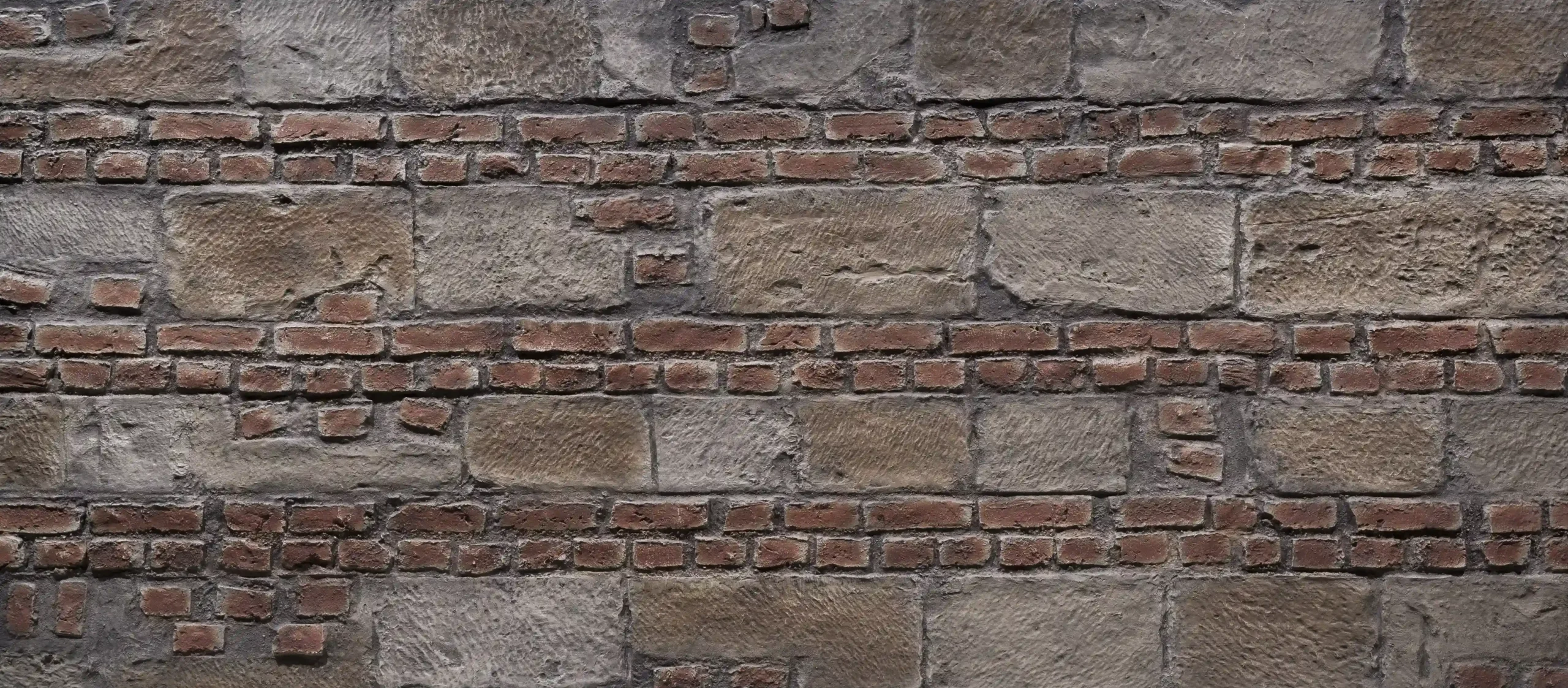

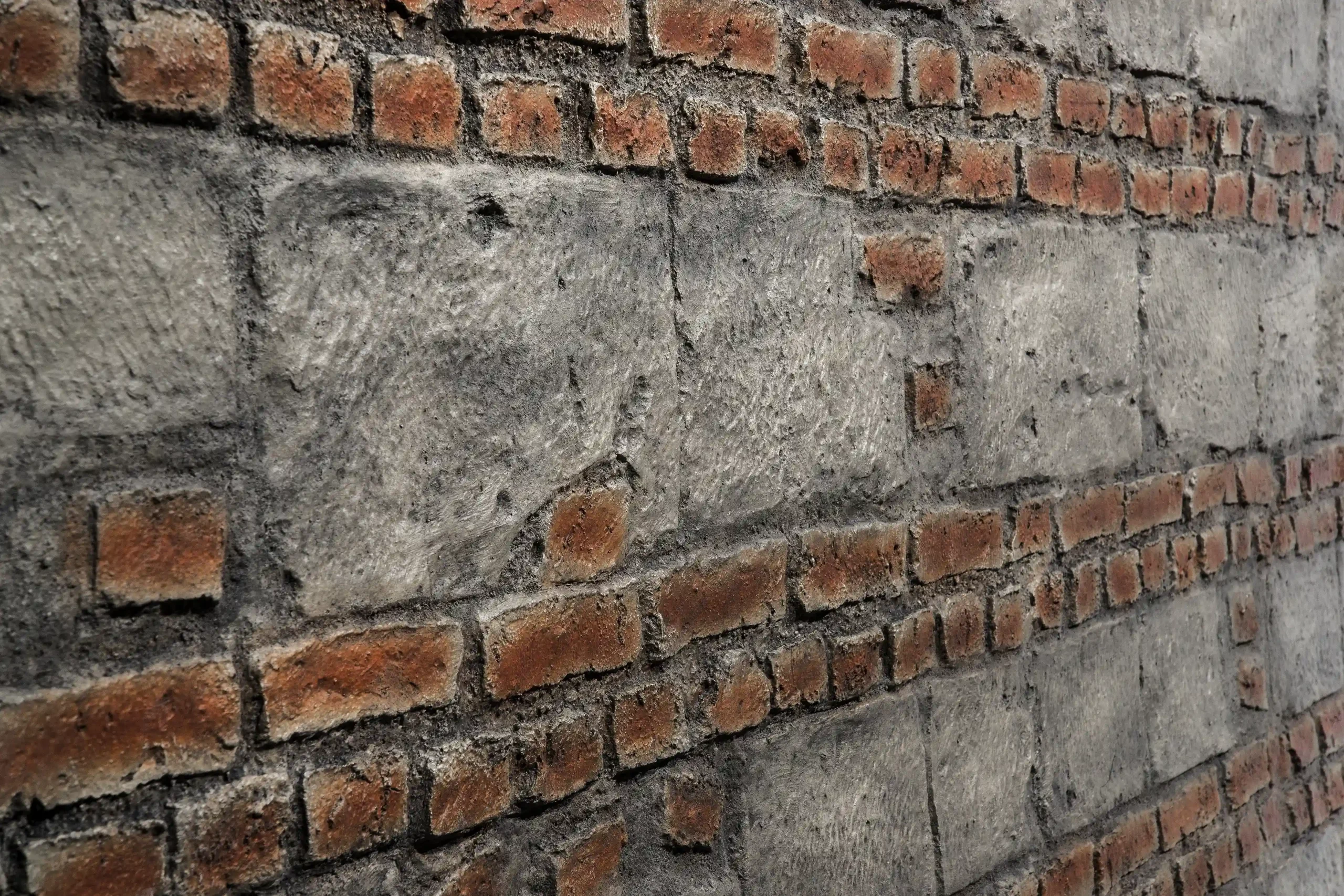

Picada Vintage panel reproduces the depth, roughness and surface complexity of natural stone or brick textures using high-precision surface molding techniques. The relief on the panel surface the rhythmic arrangement of blocks of different sizes, micro-surface roughness, and mineral/brick tonal transitions delivers the visual behavior of a real stone/brick surface under light.

The panel’s structural base is a composite system formed by the combination of a fiber-reinforced top layer and a densely filled core component.
This structure enables the panel to remain lightweight while exhibiting high mechanical rigidity, impact resistance and long-term stability. Fiber reinforcement helps the panel preserve its form under mechanical stresses such as bending, sagging or torsion. The risk of cracking, breaking or surface deformation under impact, pressure or surface loads is minimized.

The surface protection system is formulated to resist water, moisture, UV radiation, freeze–thaw cycles and atmospheric effects. Thus, Picada Vintage wall panel maintains long-lasting surface integrity and durability even in challenging conditions such as exterior façades, balconies, verandas or humid interior spaces. Because the pore structure is controlled, dirt retention is reduced and maintenance requirements remain minimal.

The panel is also workable it can be cut, drilled or adapted for electrical outlets, lighting lines or other infrastructure needs. This allows the panel to easily adapt to architectural applications such as columns, corners, niches, decorative details or accent walls. Mechanical fastening (screw + anchor) is recommended for installation; this ensures full contact with the surface and long-term stability.

The production process and material composition of Picada Vintage wall panel have been developed in line with environmental sustainability criteria. Therefore, this panel has the potential to contribute environmental performance and sustainability points to projects within green building certification systems such as LEED, BREEAM or WELL.
This makes Picada Vintage an appealing cladding solution aesthetically, technically and environmentally.

Panel Size: 294 cm × 130 cm [h] (±1%)

Panel Thickness: ~10–15 mm

Texture Depth: ~10–20 mm

Weight: ~6–6.5 kg/m²

Projects: Nun Schools - Go to link
