Class of Non-flammability: Euroclass TS EN 13501-1 EU" norms, "Class A2 s1 d0 - Non-combustible"

Density: "1.46 gr/cm³" according to "TS EN ISO 1183-1" norms

Temperature Resistance Limit: "No deterioration at 800 °C" according to "ASTM E1069" norms

Barcol Hardness: "52" according to "TS EN 59" norms

Impact resistance -Ball Method: "No crackages" according to "DIN ISO 4586 T12" norms

Impact Resistance - with Charpy Device: "30 kj/m2" according to "TS EN ISO 179-1" norms

Sound Insulation: "40 dB" according to "TS EN ISO 140-3" norms

Frost Resistance: "No deterioration" according to "ASTM C 666" norms

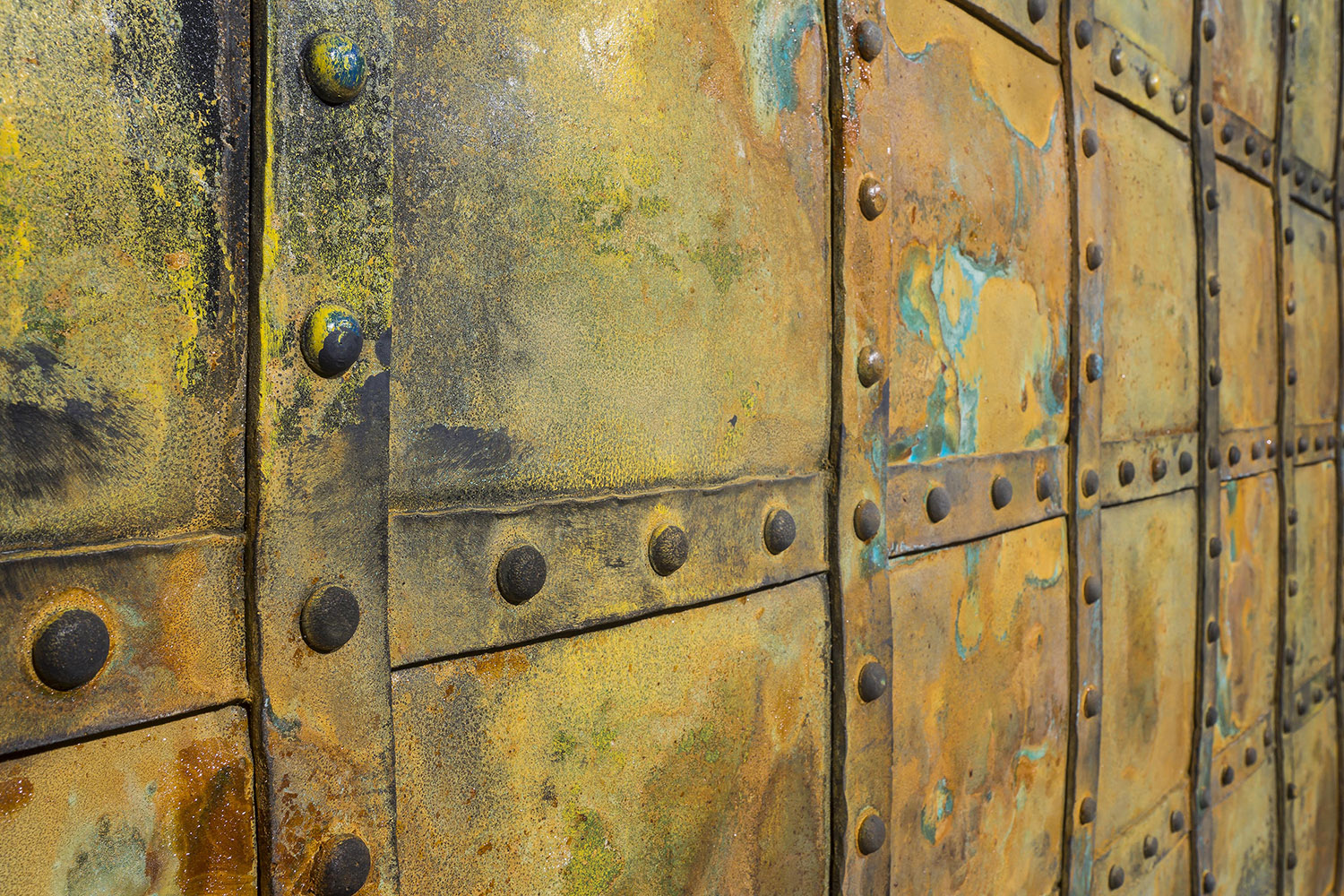

G-Qube wall panels feature a composite structural body composed of mineral-based components, special resins, and fiberglass reinforcement.This composite structure makes the panel significantly lighter, more flexible, and mechanically more durable compared to natural metal cladding.While the surface thickness and texture depth reflect the authentic feel of metal, the low weight per square meter allows safe installation on large surfaces without imposing excessive load on the supporting structure.

The panels exhibit high resistance against impact and mechanical stress;thanks to fiberglass reinforcement, no cracking, bending, or delamination occurs on the surface.Their thermal resistance is considerably high, and they are classified as non-combustible ensuring safe use in both commercial and residential projects.

The surface coating is formulated to resist water, moisture, UV radiation, and freeze–thaw cycles.Thus, even in exterior applications, the panel preserves its color, surface integrity, and metallic appearance for many years without deformation or fading.This durability against outdoor conditions makes G-Qube both an aesthetic and technical façade cladding solution.

Installation is fast and practical through mechanical fastening, and the panel’s lightweight nature reduces labor time and simplifies application.It eliminates the heavy processing and extensive substructure requirements associated with metal cladding; making G-Qube wall panel an easy choice for both new construction and renovation projects.

From a sustainability perspective, G-Qube reduces raw metal usage, enhancing resource efficiency.Its lightweight composition lowers energy consumption during transportation and installation,and its long-lasting surface minimizes the need for maintenance.These environmentally conscious advantages make the panel a valuable material for projects targeting international green building certifications such as LEED, BREEAM, and WELL.

G-Qube wall panel unites the visual strength of steel with modern building technology delivering an aesthetic, durable, sustainable, and high-performance surface solution.

Panel Size: 259 cm × 129 cm [h] (±1%)

Panel Thickness: ~16–20 mm

Texture Depth: ~16–20 mm

Weight: ~6.5–7 kg/m²
